2025-04-09Display back cover groove texture precision processing solution
Industry pain points: Extreme challenges in plastic microstructure injection molding

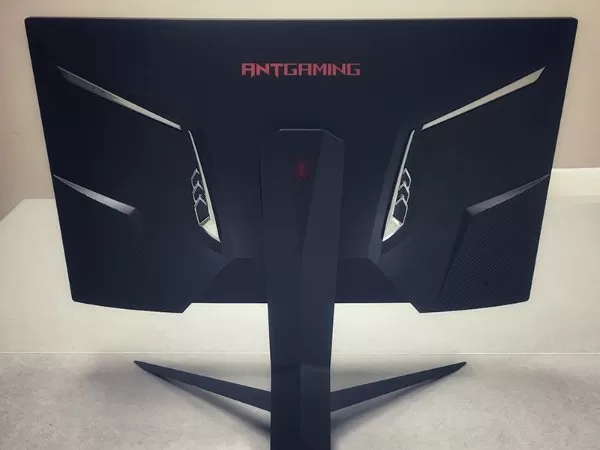

Antec's 32-inch 4K display housing development encountered a core process bottleneck:

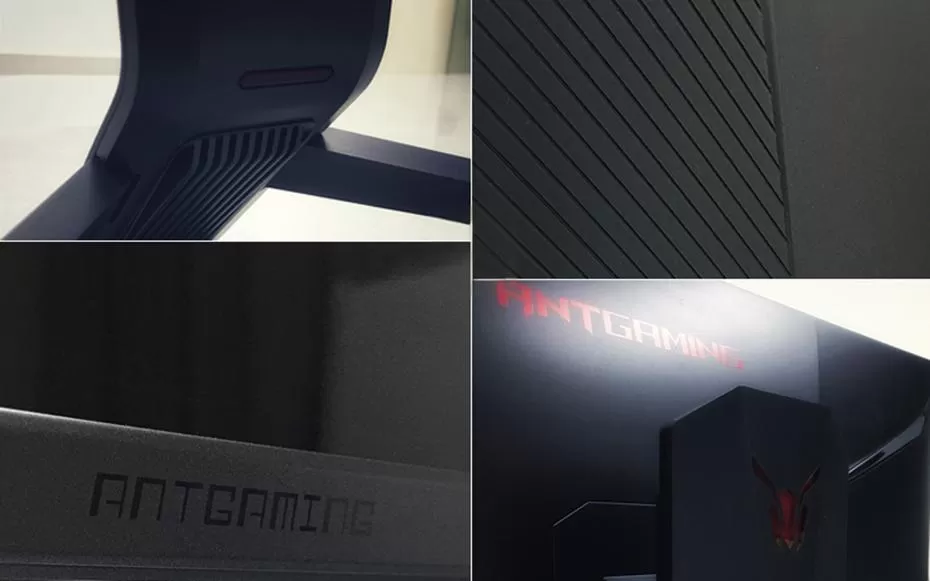

- The back shell needs to achieve a matrix groove texture of 0.3mm deep × 0.15mm wide
- Traditional plastic prototypes have weld lines/flash, and the yield rate is less than 60%
- The shrinkage rate of ABS material causes the texture deformation to exceed the standard by ±0.12mm
HXC's CNC technology advantages

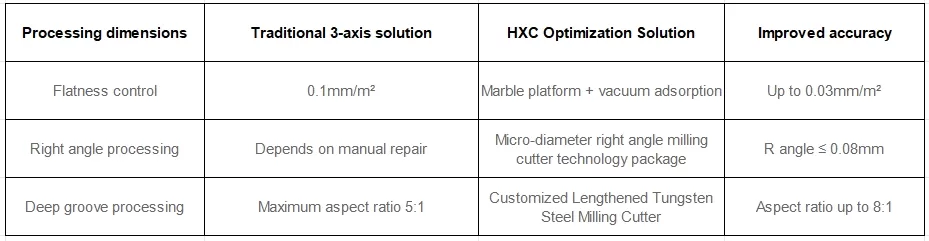

Face the breakthrough of machining accuracy
Face the exclusive craft package
Thermal deformation compensation system
Machining chamber constant temperature 23±0.3℃ + real-time temperature compensation algorithm
Tool combination strategy
Ø0.3mm ball end cutter (fine carving) + Ø6mm square shoulder milling cutter (rough machining)
Online measurement system
Blum laser tool setting instrument realizes real-time compensation of tool wear
Project results: Precision benchmark for face machining
Core Data
Texture accuracy: Groove spacing error ≤ ±0.015mm
Processing efficiency: 27-inch back shell full process processing only takes 9.5 hours
Surface quality: Pass ANSI/ASTM E430-2024 mirror test standard
Technology certification system
- ISO 10791-7 Three-Axis Machining Certification
- 12 patented technologies for direct surface processing
- Tool life prediction system (accuracy ≥ 98%)
